ECUMASTER RF STEERING WHEEL KIT
$475.99
Create your own wireless steering wheel switch panel with this new kit from ECUMaster! While ECUMaster does offer a ready to go wireless steering wheel panel in a bespoke carbon fiber housing there is not always a one size fits all solution for everyone. This kit allows you to create your own wireless switch panel with up to 8 switch/button inputs, 4 rotary switch inputs (8 positions), and 2 paddle shift inputs.
Description
Create your own wireless steering wheel switch panel with this new kit from ECUMaster! While ECUMaster does offer a ready to go wireless steering wheel panel in a bespoke carbon fiber housing there is not always a one size fits all solution for everyone. This kit allows you to create your own wireless switch panel with up to 8 switch/button inputs, 4 rotary switch inputs (8 positions), and 2 paddle shift inputs.

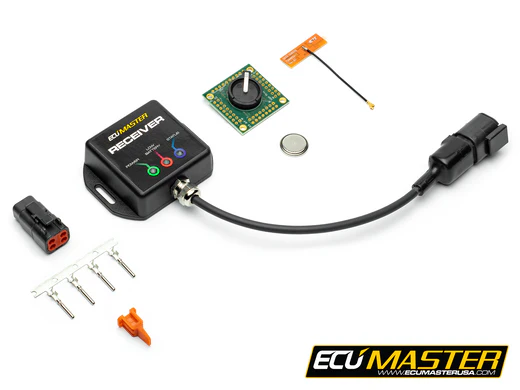

WHAT’S IN THE BOX?
Transmitter (PCB)
Battery for transmitter
Antenna for transmitter
RF Receiver
RF Receiver mating connector with terminals
RF STEERING WHEEL KIT SPECIFICATION:
Temperature range AECQ GRADE3 (-40°C to +85°C)
Battery type CR1620 (included) – Possible to connect external battery pod to extend battery life
Wireless communication Radio Frequency
Frequency range 2360 MHz to 2500 MHz
Estimated battery life 260 days at rest at room temperature or 150,000 switches
Weight 10 g
Dimensions 36 x 34 x 12 mm
Mounting mechanism 4 screws with a diameter of 3 mm
Latency Below 20 ms
Button inputs 8 with customizable functions (not included)
Rotary switch inputs 4 with eight positions and customizable functions (not included)
2 Paddle shift inputs, paddle shifters (not included)
Range (line of sight) 100 m at highest power setting
Power levels 7
Power range from -20 dBm to 4 dBm depending on power level selected
RF RECEIVER SPECIFICATION:
Temperature Range AECQ GRADE3 (-40°C to +85°C)
Operating Voltage 6-22 V, immunity to transients according to ISO 7637
CAN CAN 2.0 A/B – 125, 250, 500, 1000 kbps
Dimensions 68 x 50 x 20 mm
Weight 50 g
Connector Deutsch DTM04-4P (terminal included)
Cable length 20 cm
Mounting mechanism 2 x M3 bolts
Number of supported RF Steering Wheel Kits Up to 8
ADDITIONAL DOCUMENTS:
RF Steering Wheel Kit Manual
